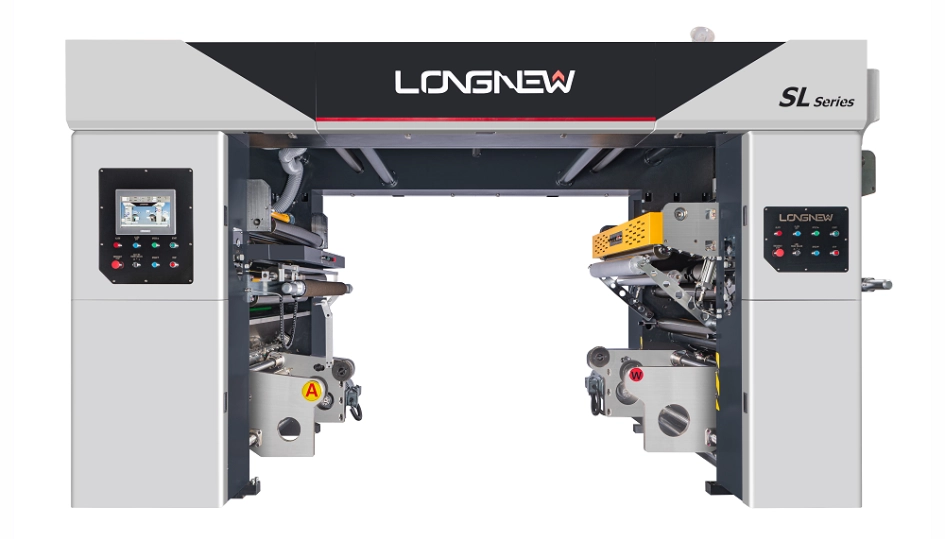

Solventless Laminating Machine
SL
-
- Quick set-up with shaftless chucks for fast loading and roll alignment.
- An easy-to-use trolley to change transfer rubber roller with sleeve type as an option
- Instant coating weight adjustment powered by precise speed control
- Consistent coating and laminating to ensure the quality of end products with taper tension control at rewinder.
- Cost saving without the use of solvent and no need for drying, perfect for most applications in the flexible packaging industry.
- With the optional in-line coating weight measurement system, coating quality is guaranteed and bonding strength is maintained to ensure the quality of laminates. Auto close-loop control system is also offered as an option to enable the most automated process.
-
Model SL Max. web width 1000 mm / 1300 mm Max. machine speed 500m/min Max. dia of primary unwinder 800 mm Max. dia of secondary unwinder 800 mm Max. dia of rewinder 1000 mm Applicable web type Plastic films -
01 Unwinder
- Shaftless chucks suit both 3” and 6” cores
- Equipped with E+L web guiding device
02 Coating unit- 5 roll solventless coating system with precise ceramic coated rollers that last longer than normal chrome coated rollers.
- User-friendly trolley to allow easy loading and unloading of transfer rubber roller. A sleeve type is offered as an option.
- Rollers are precisely thermo-controlled depending on specific requirements of adhesives
03 Laminating unit- Precisely themo-controlled laminating rollers assembly
- A cooling roller is equipped for better adhesive leveling effect
- Both laminating roller and cooling roller are ceramic coated for longer lifespan.
- A back-up roller is equipped for better laminating performance
04 Rewinder- Shaftless chucks to comply with 6” cores
- Lay-on roller for better winding performance
- Taper tension control is equipped for higher winding quality
05 In-line coating weight measurement system- The optional in-line coating weight measurement system detects real time coating weight to ensure the proper amount of adhesive is applied, therefore sufficient bonding strength is maintained without excessive use of adhesive.
- Auto close-loop control is offered as an option. Once is actual coating weight falls out of the set range of coating weight, the system sends signal to the machine to enable the auto adjustment of coating weight.
-
Features
- Quick set-up with shaftless chucks for fast loading and roll alignment.
- An easy-to-use trolley to change transfer rubber roller with sleeve type as an option
- Instant coating weight adjustment powered by precise speed control
- Consistent coating and laminating to ensure the quality of end products with taper tension control at rewinder.
- Cost saving without the use of solvent and no need for drying, perfect for most applications in the flexible packaging industry.
- With the optional in-line coating weight measurement system, coating quality is guaranteed and bonding strength is maintained to ensure the quality of laminates. Auto close-loop control system is also offered as an option to enable the most automated process.
-
Specifications
Model SL Max. web width 1000 mm / 1300 mm Max. machine speed 500m/min Max. dia of primary unwinder 800 mm Max. dia of secondary unwinder 800 mm Max. dia of rewinder 1000 mm Applicable web type Plastic films -
Detailed description01 Unwinder
- Shaftless chucks suit both 3” and 6” cores
- Equipped with E+L web guiding device
02 Coating unit- 5 roll solventless coating system with precise ceramic coated rollers that last longer than normal chrome coated rollers.
- User-friendly trolley to allow easy loading and unloading of transfer rubber roller. A sleeve type is offered as an option.
- Rollers are precisely thermo-controlled depending on specific requirements of adhesives
03 Laminating unit- Precisely themo-controlled laminating rollers assembly
- A cooling roller is equipped for better adhesive leveling effect
- Both laminating roller and cooling roller are ceramic coated for longer lifespan.
- A back-up roller is equipped for better laminating performance
04 Rewinder- Shaftless chucks to comply with 6” cores
- Lay-on roller for better winding performance
- Taper tension control is equipped for higher winding quality
05 In-line coating weight measurement system- The optional in-line coating weight measurement system detects real time coating weight to ensure the proper amount of adhesive is applied, therefore sufficient bonding strength is maintained without excessive use of adhesive.
- Auto close-loop control is offered as an option. Once is actual coating weight falls out of the set range of coating weight, the system sends signal to the machine to enable the auto adjustment of coating weight.
